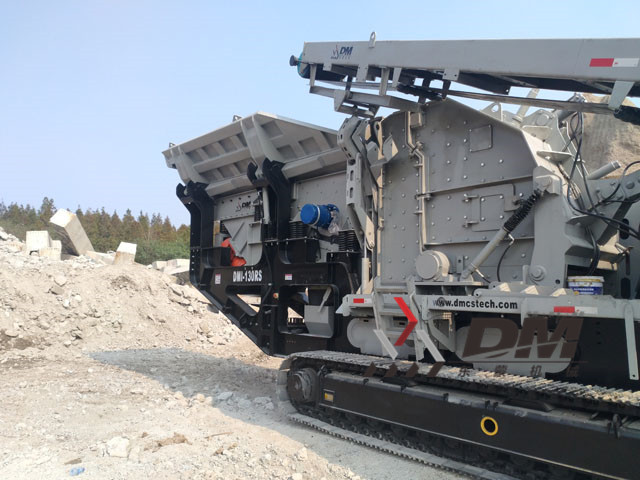

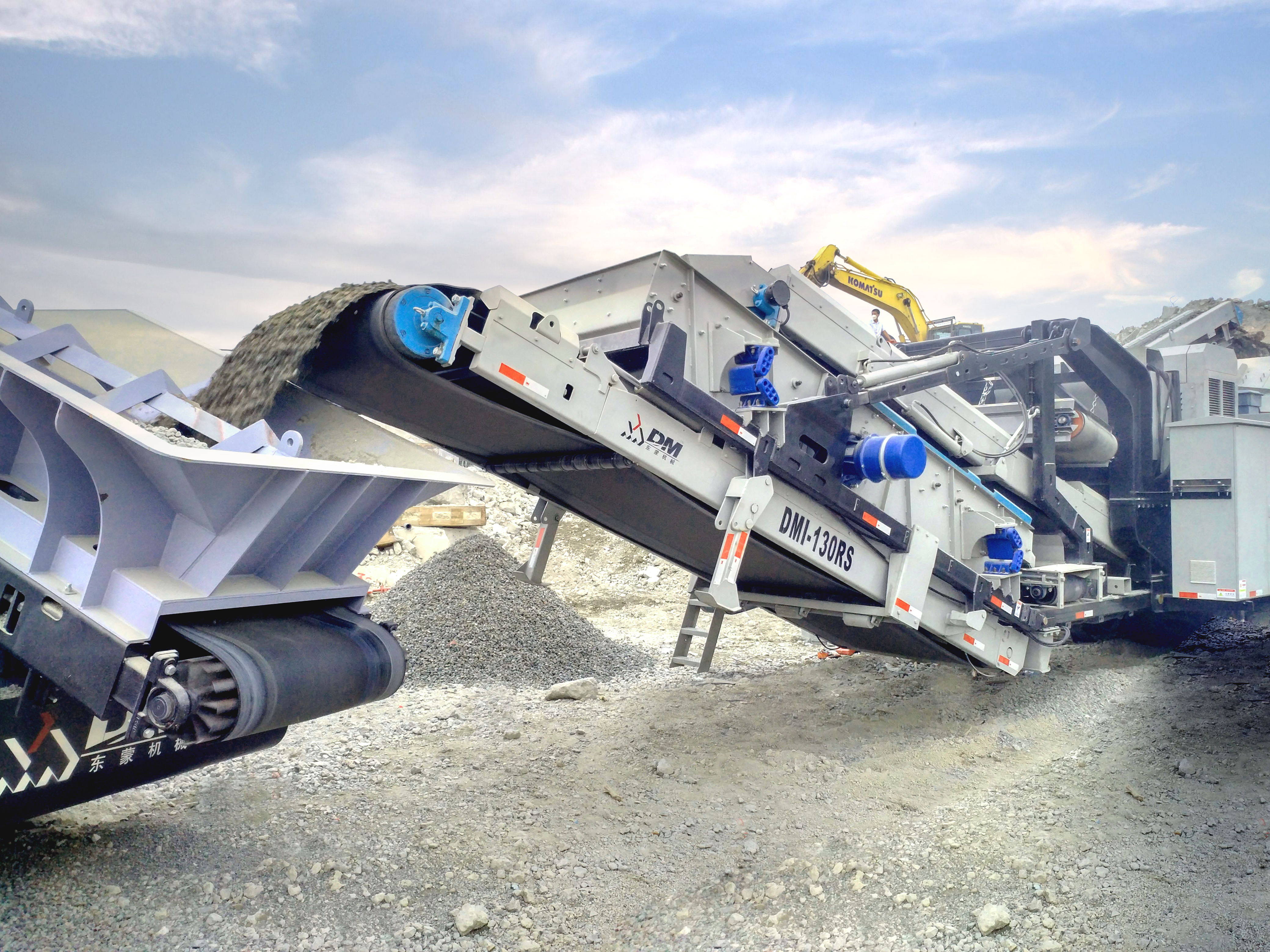

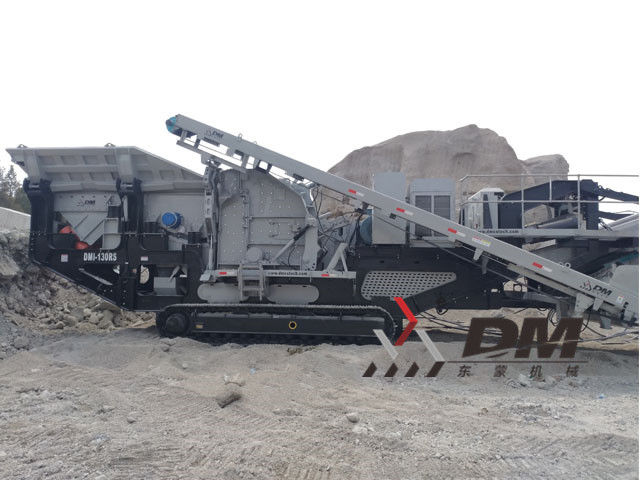

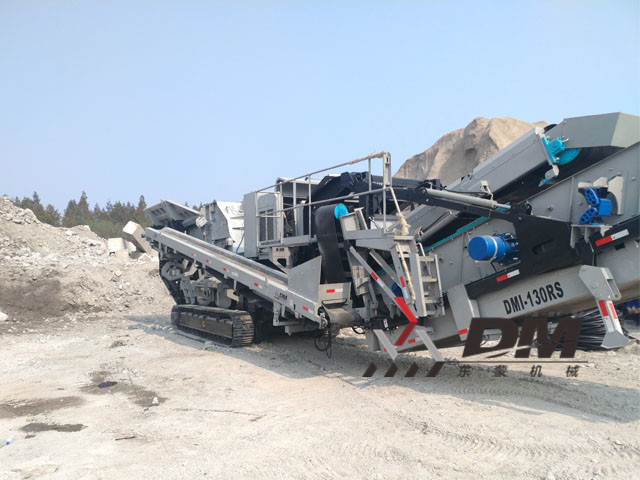

东蒙反击式移动破碎站主机采用重型转子、大容量破碎腔、 厚重反击板、合金高耐磨板锤、液压开启装置等独特设计，使其拥有较大的破碎能
东蒙反击式移动破碎站主机采用重型转子、大容量破碎腔、 厚重反击板、合金高耐磨板锤、液压开启装置等独特设计，使其拥有较大的破碎能力和破碎比，质量稳定， 生产成本低和运行维护便捷等特点。可破碎抗压强度不超过320兆帕的矿石、 岩石。经破碎的产品呈立方体，针片状含量低，几乎无内裂缝。
| 型号Model | DMI100RS | DMI130RS | DMI160RS | |||
| 喂料设备Feeding Equipment | ||||||
| 喂料能力(t/h)Capacity(t/h) | 250 | 400 | 400 | |||
| 最大喂料尺寸(mm) Max feeding size(mm) | 550 | 650 | 650 | |||
| 喂料高度(mm)Feeding Height(mm) | 3800 | 3800 | 3800 | |||
| 料斗容积(m3)Hopper Volume(m3) | 9 | 9 | 9 | |||
| 振动喂料机Feeding Belt Conveyor | ||||||
| 规格Specifications 功率(kw)Motor(kw) | 4100x1050 4.5x2 | 4100x1050 4.5x2 | 4100x1050 4.5x2 | |||
| 破碎机Impact Crusher | ||||||
| 反击破碎机型号Model | l1010 | l1313 | l1316 | |||
| 最大进料粒度(mm)Max Feeding Size(mm) | 500 | 600 | 600 | |||
| 逬料口尺寸(mm)Feed opening (mm) | 1100x800 | 1240x990 | 1630x990 | |||
| 破碎机功率(kw) Motor(kw) | 160 | 200-220 | 250-280 | |||
| 废料皮带机Returning Belt Conveyor | ||||||
| 规格 Specifications | B650x3.3M | B650x3.3M | B650x3.3M | |||
| 功率(kw)Motor(kw) | 3 | 3 | 3 | |||
| 主皮带机Main Belt Conveyor | ||||||
| 规格 Specifications | B1000x10M | B1000x13.2M | B1000x13.2M | |||
| 功率(kw)Motor(kw) | 11 | 7.5x2 | 7.5x2 | |||
| 振动筛 Vibrating Screen | ||||||
| 规格 Specifications | 4000x1600 | 5000x1700 | 5000x1700 | |||
| 功率(kw)Motor(kw) | 3.06x2 | 3.06x2 | 3.06x2 | |||
| 成品皮带机 Final Product Belt Conveyor | ||||||
| 规格 Specifications | B1400x4.8M | B1400x5.7M | B1400x5.7M | |||
| 卸料高度(mm)Unloading Height(mm) | 2850 | 2850 | 2850 | |||
| 功率(kw)Motor(kw) | 7.5 | 7.5 | 7.5 | |||
| 返料过渡皮带机 Transition Belt Conveyor | ||||||
| 规格Specifications 功率(kw)Motor(kw) | B500x3.5M 3 | B500x3.6M 3 | B500x3.6M 3 | |||
| 返料皮带机Returnining BeIt Conveyor | ||||||
| 规格Specifications 功率(kw)Motor(kw) | B500x9.45M 4 | B500x10.3M 4 | B500x10.3M 4 | |||
| 整机 Whole Plant | ||||||
| 行走发动机功率(kw)Driving Motor(kw) | 单76，双280 | 单76，双320 | 单76，双360 | |||
| 整机重量(t) Total weight(t) | 单53，双55 | 单58，双60 | 单59，双61 | |||
| 处理能力(t/h) Capacity(t/h) | 80-220 | 150-300 | 180-360 | |||
| 运输尺寸长x宽x高(m)Size L x w x H(m) | 17.3x3.8x3.8 | 18x3.8x3.8 | 18x4x3.8 | |||
| 外接电源功率(kw)Extemal Power(kw) | 213 | 251-271 | 302-332 | |||
